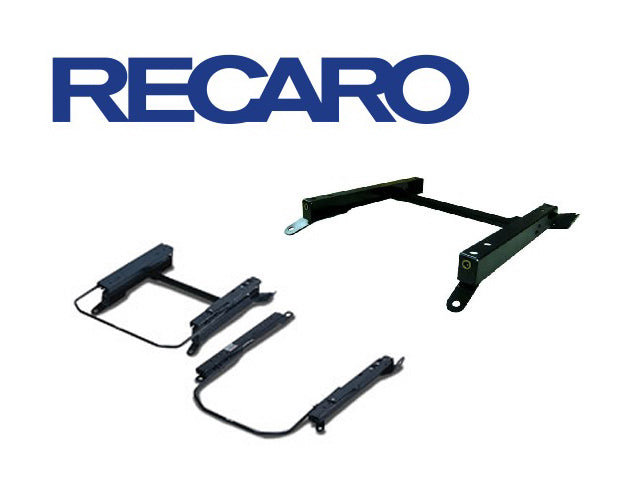

Recaro Japan - Base Frame Seat Rail Standard - BMW F80 M3
Manufacturer: Recaro Japan
Reference Number: 2014.025.1/ 2014.025.2
Position:
New structure frame. One position type.
Notes and Remarks:
For the RS/TS-# series, the offset adapter set for RS/TS-G (product number 1700001J) allows the handle offset to be adjusted in 5mm increments from 5mm up to 15mm. (When installing, please consult your dealer about interference with the console side (shift etc.)) Adjust the RCS to the optimum position (front and back height, left and right offset 0/5/10mm) with the RCS side adapter (sold separately). Please put it on.
This product cannot be installed on seats other than those listed in the matching information below. F30, F80. Comes with side airbag canceller. Vehicles equipped with genuine seat active headrests cannot be installed. Conformity for vehicles equipped with optional accessories is unconfirmed. Installation on a vehicle with a seat sensor in the passenger seat requires an SBR-equipped RECARO seat and RECARO variable connector
Adjust the RMS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold RMS side adapter. Also, if there is interference with the interior, it can be alleviated by adjustment. Adjust the RCS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold RCS side adapter.
Seat Fitting:
This seat rail fits:
LX / LX- # / LX-VS / LX-VF / LX-VL / Ergomed / Ergomed C / Ergomed D / Ergomed E / Ergomed LD / Ergomed MV (IS-84 base)
LX-F (based on IS-05)
LS / LS- # / LT- #
RMS2600A / 2700G You need to prepare the side adapter separately.
New Orthopedo (with Recaro Vent)
RCS You need to prepare the side adapter separately.
SR-2 late model / SR-3 / SR-4 / SR-5 / SR-VF / SR-IMPACT / SR-IMPACT Pro
SP-A / SP-G / SP-G2 / SP-G3 / SP-GT / SP-GT2 You need to prepare the side adapter separately.
AM19 TREND-J
AM19 TREND-JJ
AM19 TREND-JC
AM19 STYLE-J
AM19 STYLE-JJ
AM19 STYLE-JC
AM19 SPORT-J
AM19 SPORT-JJ
AM19 SPORT-JC
AM19 TREND-JS
AM19 STYLE-JS
AM19 SPORT-JS
AM19 TREND-D
AM19 TREND-DC
AM19 STYLE-D
AM19 STYLE-DC
AM19 SPORT-D
AM19
TS-G / RS-G / TS-W / RS-W You need to prepare the side adapter separately.
SP-X
SR-6 / SR-7 / SR-7F / SR-11
Sportster / Cross Sportster
TVA / IVA / VAT: All import taxes (TVA / IVA / VAT) are included in our pricing. No other taxes will be charged to you during delivery!
This product will be shipped from our Japanese Warehouse to our European Warehouse and redistributed in Europe!
M3 | F80 | 2014-2018 | TTC | S55B30 | I6
