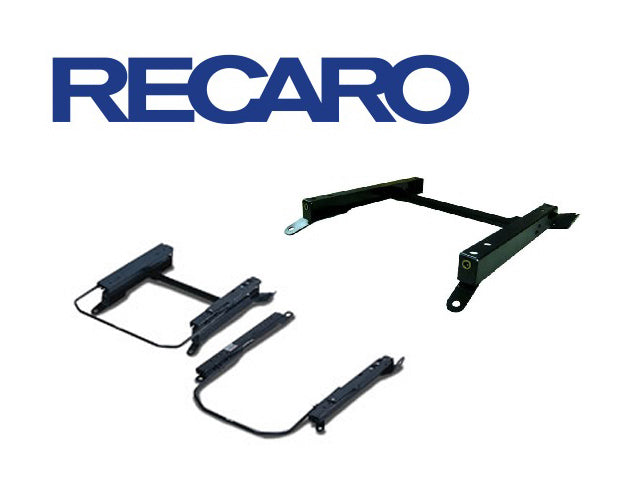

Recaro Japan - Base Frame Seat Rail Standard - Mazda - MX-5 Miata Roadster NCEC
Manufacturer: Recaro Japan
Reference Number: 2082.080.1/ 2082.080.2
Position:
New structure frame. One position type.
Notes and Remarks:
Vehicles equipped with side airbags require work to turn off the airbag warning light. The seating position is almost the same as the genuine seat (when using ST-JJ). Seat offset door side about 20mm (Recaro is closer to the door side). The amount of sliding to the rear is reduced by about 25mm compared to genuine.
(Caution) It can only be attached to the seats listed in the matching information below. Includes side airbag canceller.
Adjust the RMS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold RMS side adapter. Also, if there is interference with the interior, it can be alleviated by adjustment. Adjust the RCS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold RCS side adapter.
Seat Fitting:
This seat rail fits:
LSR-6, 7, 7F, and 11 interfere with the interior resin parts (aero board) by several millimeters when the headrest is behind the slide position.
For SP-#, SP-#N, TS-#, and RS-#, the shoulder part interferes with the interior resin cover by several millimeters at the rear end of the slide position.
Sport-J, JJ, JC, D, DC interfered with the door armrest and center console by several mm on the backrest side, and the shoulder part interfered with the interior resin cover by about 10 to 15 mm at the rear end of the seat slide position.
For the RS/TS-# series, the offset adapter set for RS/TS-G (product number 1700001J) allows the handle offset to be adjusted in 5mm increments from 5mm up to 15mm.
Adjust the RMS to the optimum position (front/rear height, left/right offset 0/5/10mm) with the RMS side adapter (sold separately). Please put it on. In addition, even if there is interference with the interior, it is possible to soften it by adjusting. Please adjust the RCS to the optimum position (front/rear height, left/right offset 0/5/10mm) with the RCS side adapter (sold separately).
TVA / IVA / VAT: All import taxes (TVA / IVA / VAT) are included in our pricing. No other taxes will be charged to you during delivery!
This product will be shipped from our Japanese Warehouse to our European Warehouse and redistributed in Europe!
MX-5 Miata Roadster | NCEC | 2005-2008 | NA | LF-VE | I4
